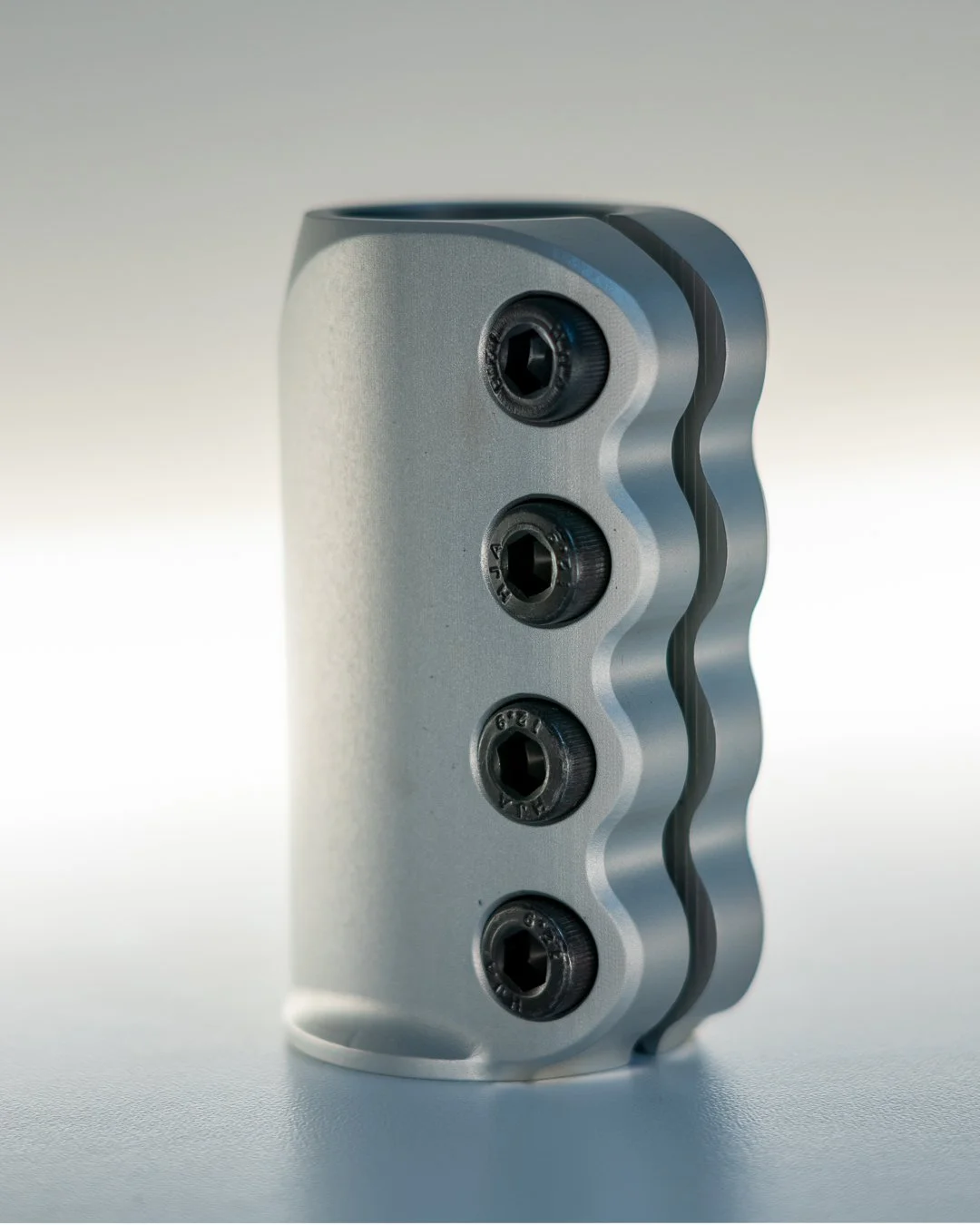

Focal Architype SCS Clamp

LIGHT, RELIABLE, RIGID

This clamp has been on my mind for quite some time. The rigidity and strength gained from such a design will prove invaluable to those who are hard on their scooters. With the integration of a headset also, we have removed a component from the scooter reducing both weight and complexity.

This clamp will sit flush on the majority of fork tube and headtube lengths thanks to an additional 5mm internal spacer and the integrated headset cap.
Made from the 7075 T-6 aluminium this SCS will be an indestructible component of your scooter while only weighing in at 263g including the four m8 bolts.

This clamp only fits standard sized bars (31.8mm) and NOT oversized bars.

TECHNICAL SPECIFICATIONS

Fit - 31.8mm Standard Bar Size Only

Material - 7075 T-6 Aluminium

Total height - 92.5mm

Total Weight incl. Bolts - 263g

M8 Bolts

Comes with SCS M8 Bolt Compression System
